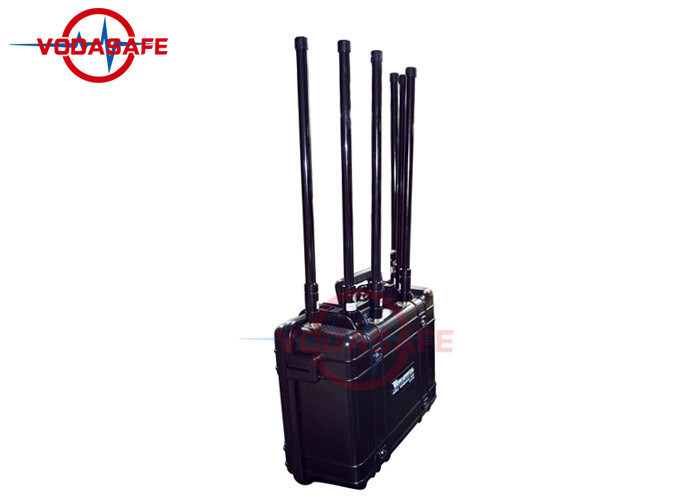

High Power Portable6BandJammer/Blocker Purple Horn PL6

High Power Portable6BandJammer/Blocker Purple Horn

Brief Description:
Purple Horn PL6 Is multi-band bomb jammer can be constructed to jam up to six frequencies bands, and the overall RF output power is up to 80 Watts. It is used to prevent RCIED detonation and for convoy and VIP executive protection by creating electronic countermeasures. These powerful and durable Jammer sets are functional counter-IED tools which are currently deployed in many parts of the world, and have a proven track record for prevention of injury and loss of life.

Features:

*High-power multi-band jammer.

*Fully portable trolley-type case for easy transportation and rapid deployment.

*Each unit can jam up to 6 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0).

*100% safe VSWR over protection for each modular.

*Build-in AC power DC27V and Battery 27V 20Ah continue working 1.5hours.

*Battery Power and charger stative display via LED screen.

Applicable place:
Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug units, Riot-control units, Embassies protection, Roadblock protection, Checkpoint protection.

Specification:

Total Output power: 80W;

Cover Radius:20-100m(GPS signal for 200m,under Signal level ≤-85dBm)@according to the signal density mobile network);

Antenna type: High gain 5-7 dbi Omni-directional antennas;

Power Supply: AC adapter 50 to 60Hz,AC110-240V to DC27V;

Build-in Rechargeable Battery: 27V 20Ah;

Cooling System: High efficiency aluminum alloy radiator+ 6 x cooling fans;

Working Time: working 1.5hours by battery;

Working Temperature: -30~60℃;

Dimension(LXWXH): 460*380*180mm not include antennas;

Package Size: 550x450x300mm;

Weight:18kg
